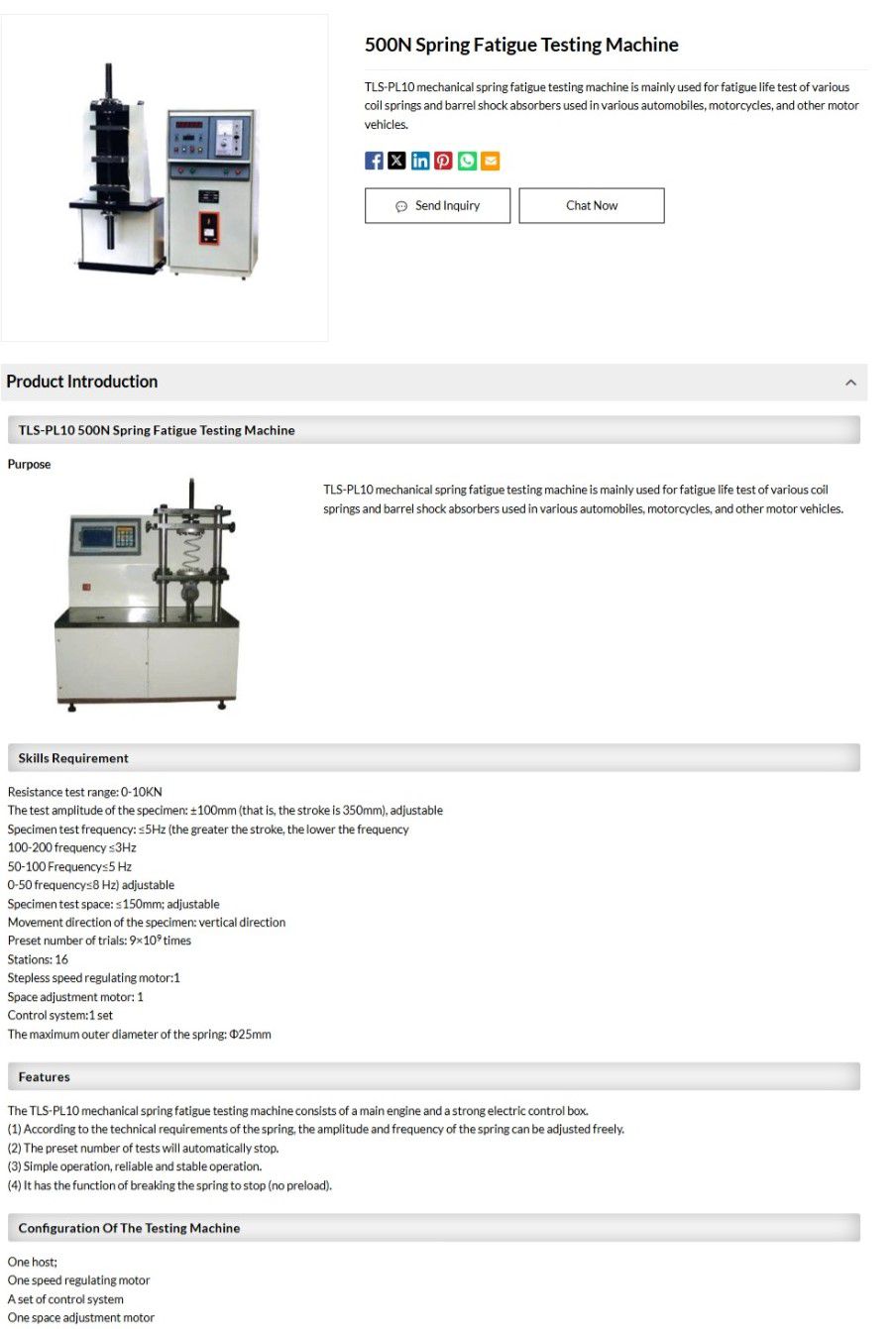

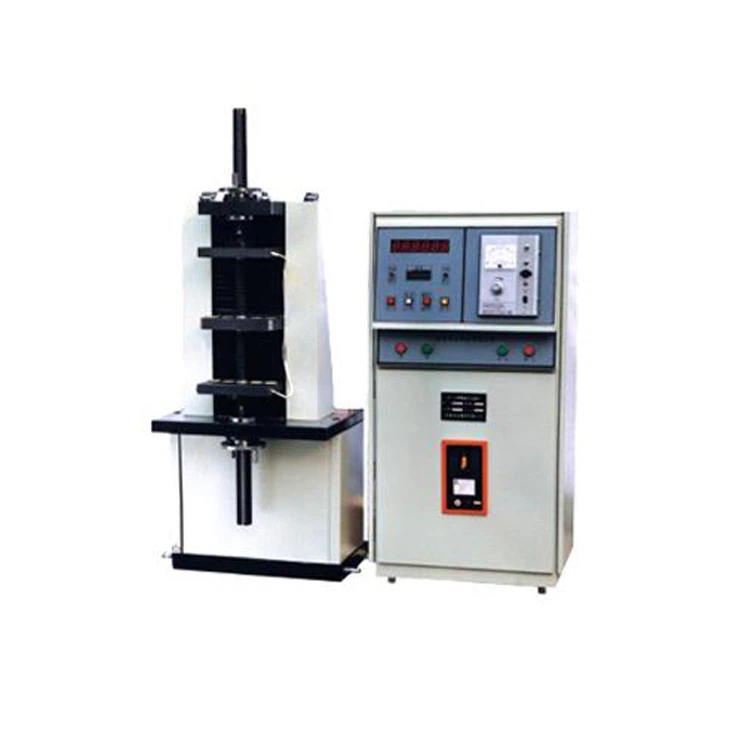

NAKE TLS-PL10 Spring Fatigue Testing Machine (0 – 10 kN)
ManufacturerNAKE(View more products from this manufacturer)
ModelTLS-PL10
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Resistance test range: 0-10KN
The test amplitude of the specimen: ±100mm (that is, the stroke is 350mm), adjustable
Specimen test frequency: ≤5Hz (the greater the stroke, the lower the frequency
100-200 frequency ≤3Hz
50-100 Frequency≤5 Hz
0-50 frequency≤8 Hz) adjustable
Specimen test space: ≤150mm; adjustable
Movement direction of the specimen: vertical direction
Preset number of trials: 9×109 times
Stations: 16
Stepless speed regulating motor:1
Space adjustment motor: 1
Control system:1 set
The maximum outer diameter of the spring: Φ25mm
