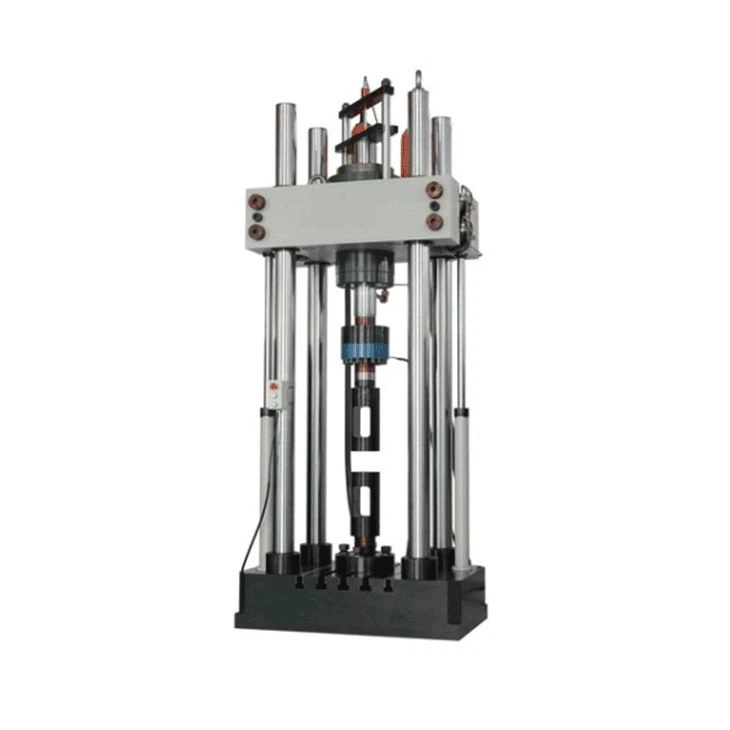

NAKE PLW Steel Strand Fatigue Testing Machine (static 1000kn, dynamic ±1000kn)
ManufacturerNAKE(View more products from this manufacturer)
ModelPLW
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Maximum test force: static 1000kn, dynamic ±1000kn;
Test force indicating value accuracy: ≤±1%
Accuracy of displacement indicating value: ≤±1%FS
Frequency range (Hz): 0.1—10 Hz, steplessly adjustable
Control mode: three control modes of load, displacement and deformation, which can be switched between each other
Effective measurement range of test force: 2%-100%FS (no division in the whole process, equivalent to four gears)
Maximum test space: 1000mm (it can be customized according to demand)
Actuator piston stroke: ±100 mm
