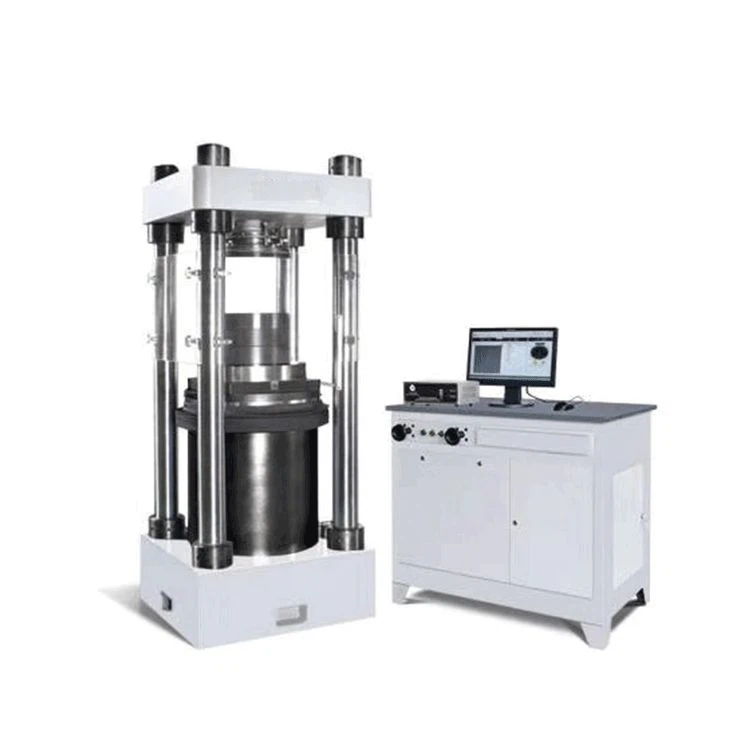

NAKE NKYAW-3000D Concrete Compression Testing Machine (3000KN)
ManufacturerNAKE(View more products from this manufacturer)
ModelNKYAW-3000D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Maximum test force: 3000KN
Measuring range: 2%-100%F.S
Relative error of test force indication: ≤±1.0%
Afterburner speed range: 1-70KN/s
Loading speed: The settings can be adjusted arbitrarily within the allowable range.
Upper platen size: Φ300mm
Lower platen size: Φ300mm
Maximum distance between upper and lower platens: 450mm
Constant pressure accuracy: ±1.0%
Piston stroke: 200mm
Total power: 2.2kW
Dimensions:
Main engine: About 1000×700×1900
Measurement and control box: 1080*650*1200mm
Weight: About 3000Kg
