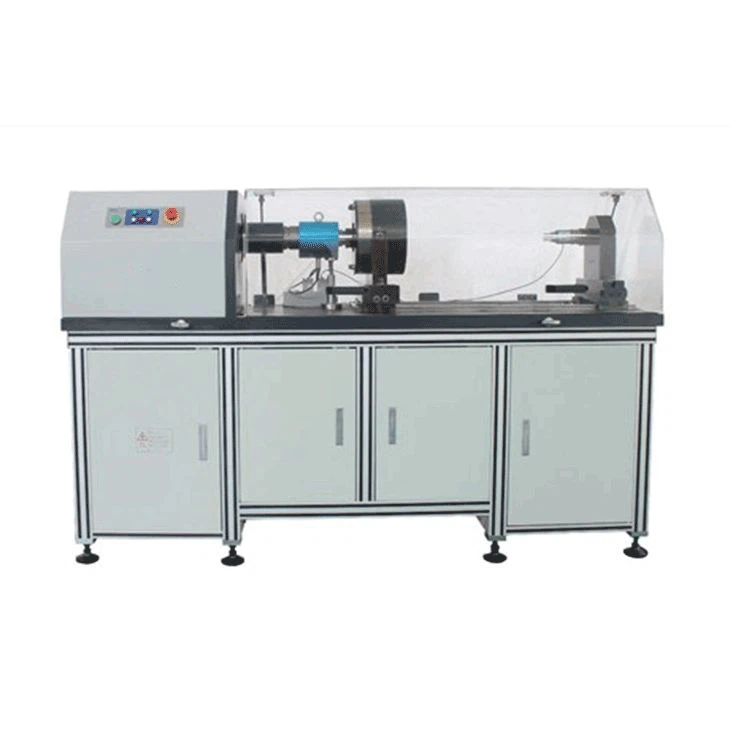

NAKE NK-M500E Friction Coefficient Testing Machine (20 Nm – 2000 Nm)

Host style: horizontal

Dynamic torque measurement range: 20Nm-2000N.m

Static torque test range: 10NM-1000N.m

Axial force measurement range: 10KN-500KN

Relative error of axial force and torque indicating value: ±1%

Repeatability error of axial force and torque indicating value: < 1%

Measurement range of torsion angle: 0-100000°

Relative error of angle measurement: ±0.5%

Torsion speed: 0-10r/min

Rotation direction: forward rotation, reverse rotation

Protection function: the testing machine has overload protection function

Diameter of testing bolt: M10-M24

Bolt length: 40-200mm (other lengths can be customized)

Power supply: 380V, 50Hz

Motor power is about 3.0KW
