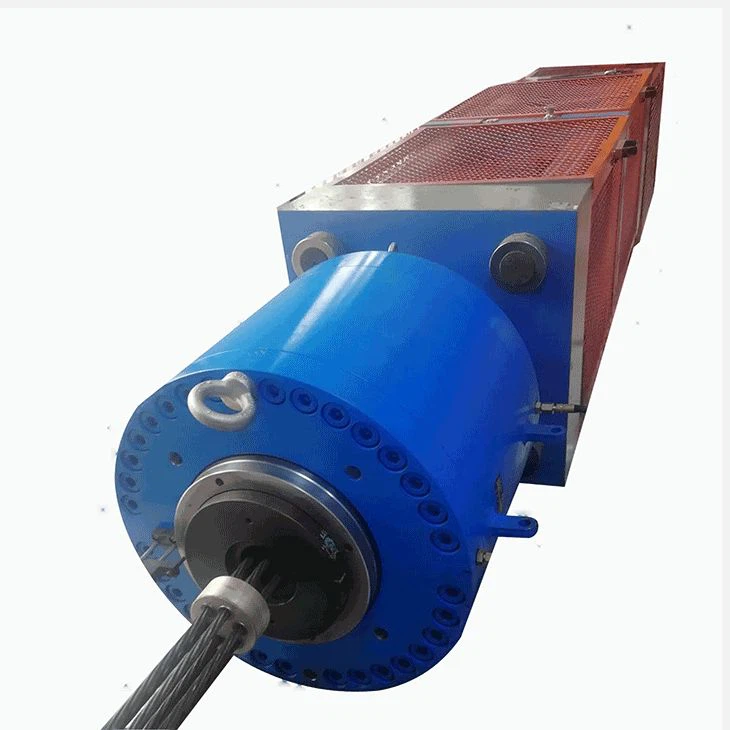

NAKE MGW-6500 Static Load Anchor Testing Machine (6500kN)

Maximum test force: 6500kN

The measurement range is 4% to 100% (the whole process is not graded), and the resolution of the control system is not less than 500,000 yards

Force control rate control range: 1kN/s～50kN/s

Speed control range: ≤±5%

Indicating value accuracy (test force) is better than ±1% of indicating value

Displacement measuring range: 0～200mm

Indicating value accuracy (displacement): ±1%

Repeatability: ±0.5%

Relative resolution: ±0.5%

Piston stroke: 200mm

Stretch spacing 3500mm

Protection function: It will automatically stop when the test force exceeds 2% to 5% of the maximum test force.

Mainframe form of testing machine: Horizontal structure; four columns

Equipment power: AC380V 50Hz/3.5kW

Host size: (L×W×H) 4700×800×900mm

Machine weight: 4700kg

Control cabinet size and weight: 1180×800×1310mm; 100kg
