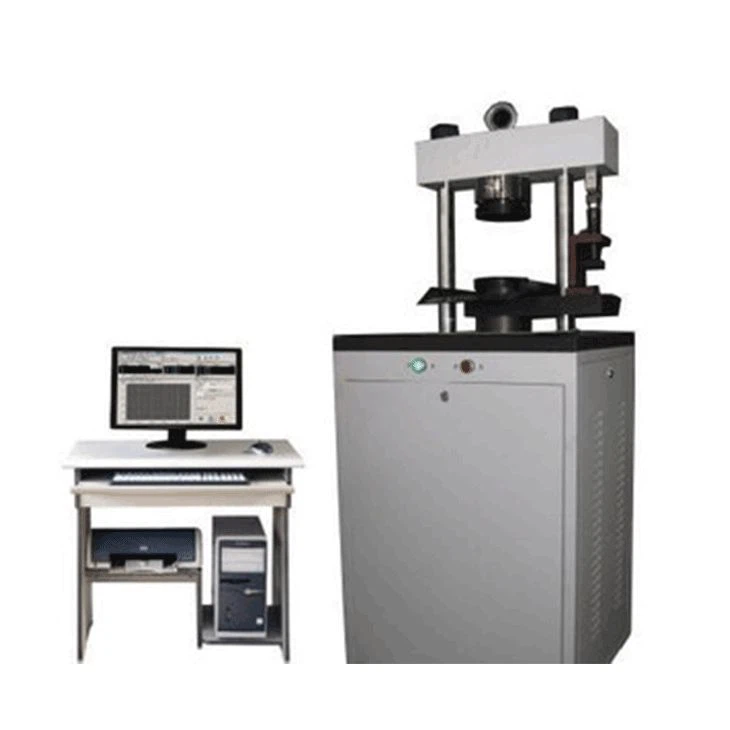

NAKE JQBY-100 Concrete Compression Testing Machine (100KN)

Test force：100kN

Testing machine level: 1.0

Load measurement range: 0.2%～/100%

Relative error of indicating value: ±1% (grade 1.0)

Test force resolution: 1/±500000FS (full resolution unchanged)

Deformation measurement range: 0.2%～100%

Force control rate adjustment range: 0.005%～5%FS/S

Force control rate control accuracy: When the rate is less than 0.05%FS, it is within ±1% of the set value;

Deformation rate adjustment range: 0.005～5%FS/s;

Deformation rate control accuracy: When the rate is less than 0.05%FS/s, it is within ±1% of the set value;When the rate is ≥0.05%FS/s, it is within ±0.5% of the set value;

Displacement rate adjustment range: 0.01～500mm/min;

The displacement rate control accuracy is within ±0.2% of the set value;
