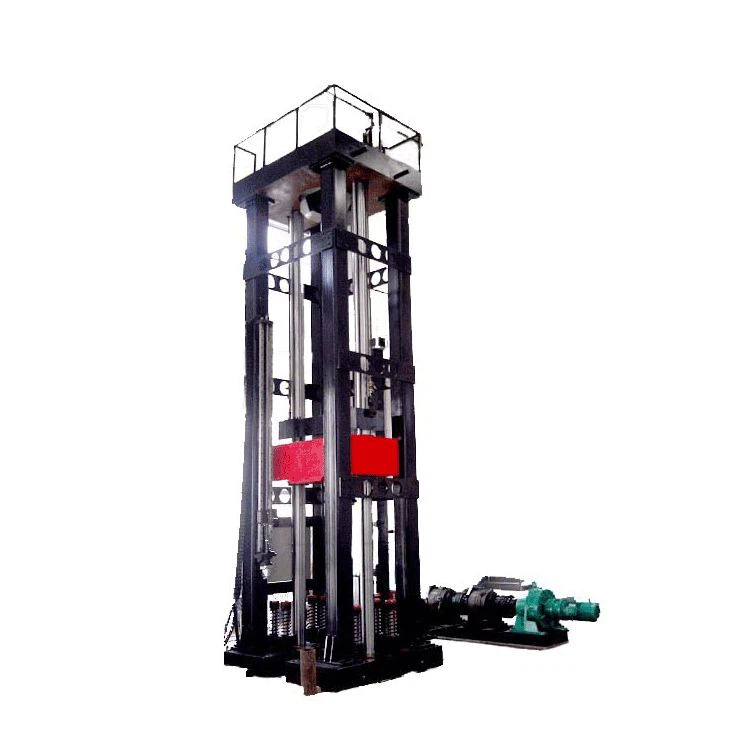

NAKE JLS-10000 Drop Weight Impact Testing Machine (10000J)

The maximum impact energy : 10000J

Impact speed :≥7m/s

The installation height of the host: ≤5.5m

Mass error of counterweight weight : ≤±0.5%

The total mass error of the drop weight : ≤1%

Rockwell hardness of hammer blade and supporting surface of support jaw: >HRC56

The radius of curvature of the drop hammer blade : R25.4±2.5mm

The radius of curvature of the support jaws : R14.3±1.59mm

Support span :254+1.5mm

The deviation between the center line of the hammer blade and the center of the span of the support : ±1.5mm

The deviation between the sample centering device and the center line of the sample gap : ≤1.5 mm

The deviation between the lifting height of the drop weight and the standard value :s ≤1.5 mm

sample size : 305×76×(3~40)mm

Dimensions of the testing machine: 1600×2200×5000mm

Motor power: 3.5kw
