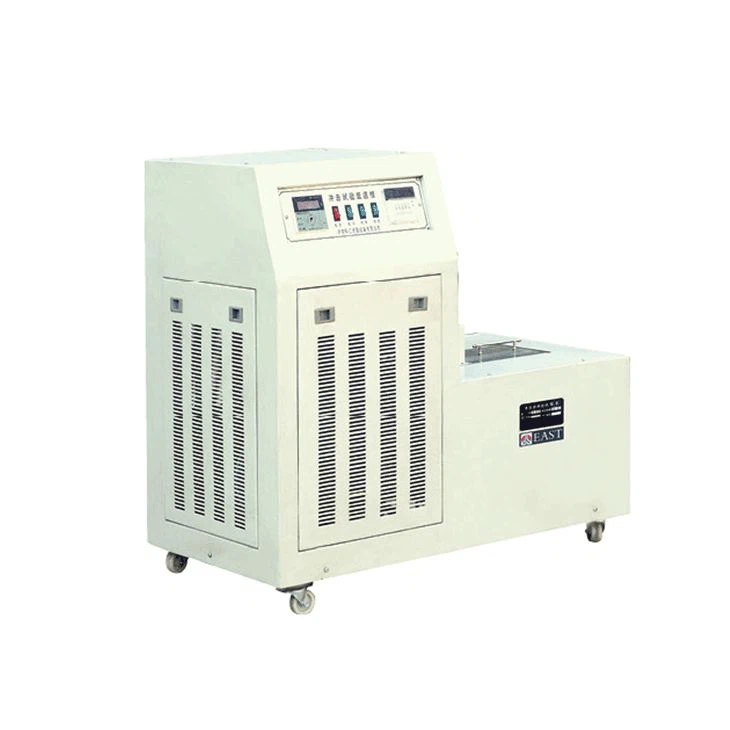

NAKE DWC-80 Impact Test Low Temperature Chamber (RT ～ -80℃)

Temperature control range: room temperature～-80℃

Constant temperature accuracy: <±0.5℃

Cooling speed: room temperature～0℃, about 2.0℃/min

0℃～－20℃ about 1.5℃/min

- 20℃～- 40℃ about 1.0℃/min

- 40℃～- 60℃ about 0.7℃/min

- 60℃～- 80℃ about 0.4℃/min

Maximum external dimension: 900×510×900mm (length×width×height)

Effective test space: 120×120×70mm (length×width×height)

The number of samples that can be loaded: >60 (impact sample size: 10 × 10 × 55mm)

Digital timer: 1 minute to 99 minutes, resolution 1 minute

Cooling medium: ethanol or other antifreeze (self-provided)

Stirring motor: 8W

Working power supply: 220V～240V, 50HZ, 3KW
