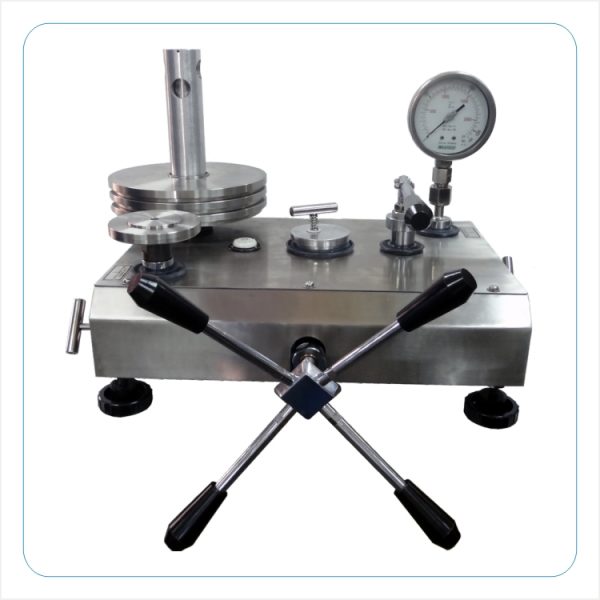

Nagman H6900N Hydraulic Dead Weight Tester (1200 Bar, ±0.015% rdg)

Ranges: 1000 / 1100 / 1200 Bar

Piston: Dual

Standard Accuracy: ±0.015% of Reading

Traceability: International Standards

Weights: Non-Magnetic Stainless Steel

Pressure generation: Thro’ Priming Pump & Screw Ram

Standard Corrections: Gravity : 9.80665 m/s2* / Temperature : 20°C / Air Density : 1.2 Kg/Cm2

Weight (approx.): Instrument : 19 Kg. ; Weight Sets : 8 to 33 Kg.

No. of Weights: 12 to 15

Instrument Dimensions: 530 x 325 x 230 mm (L x W x D)

Operating Fluid: Oil

DWTCal Software: Supplied

PCU: Hardened Special Steel Piston & & Matching Cylinder

Remarks: From ISO/IEC 17025:2005 Accredited Lab

Standard Delivery: Basic Instrument, Calibrated Stainless Steel Weight Sets, Full set of Adaptors consisting of 1/8”, 1/4″, 3/8”, 1/2″ BSP (Set of NPT Adaptors available on request), Operating Fluid (500 ml), Spirit Level, Pointer Puller / Punch, Set of Spanners & Screw Driver, ‘O’ Ring & Seals, Wooden Carrying Case (for Weight Sets), Instruction Manual, DWTCal Calibration Software, Calibration Certificate from NABL Accredited Laboratory (as per ISO/IEC 17025:2005)

Optionals: Right angled Adaptor / Two Gauge Adaptor, Conversion Weight Sets to convert from one unit of Pressure to another, Incremental Weight Sets for smaller increments of Pressure
