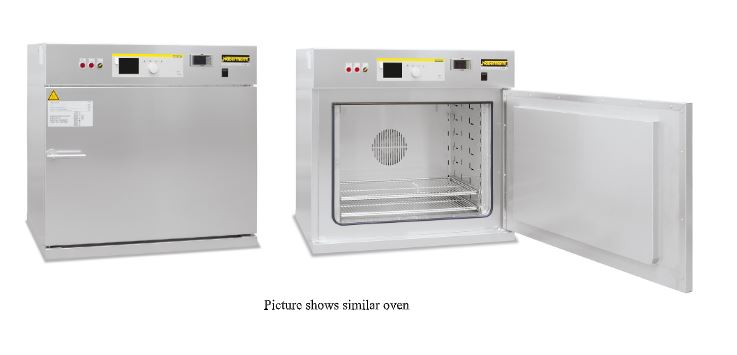

NABERTHERM TR 240 LS Drying Oven

Controller Option

Electrically heated oven with safety equipment according to EN 1539

Technical specifications:

Inner dimensions: approx. 750 x 530 x 600 mm (wxdxh)

Work space 1 approx. 650 x 430 x 500 mm (wxdxh)

Outer dimensions: approx. 1.000 x 870 x 970 mm (WxDxH)

Volume: 248 liters

Total steam room: 289 liters

Weight: 167 kg

Power rating: approx. 7 kW

Supply voltage: 400 V, 3/N/PE, 50/60 Hz

Tmax*: 260 °C

Temperature Uniformity: +/- 8 K in the empty workspace according to DIN 17052-1

Recommend working temperature up to 220 °C

Exhaust volume: approx. 30 m³/h

Air exchange rate: approx. 1,7 x/min

Exhaust flow rate: approx. 5 m/s

Heat-up time (without load): approx. 35 min. to Tmax

(if connected at 400 V, 3/N/PE)

Grid incl. delivery: 2 pc.

Max. number of grids: 8 pc.

Max. charging weight per grid: 30 kg

Max. charging weight complete: 150 kg

Grid distance (top/top) 70 mm

Grid height 15 mm
