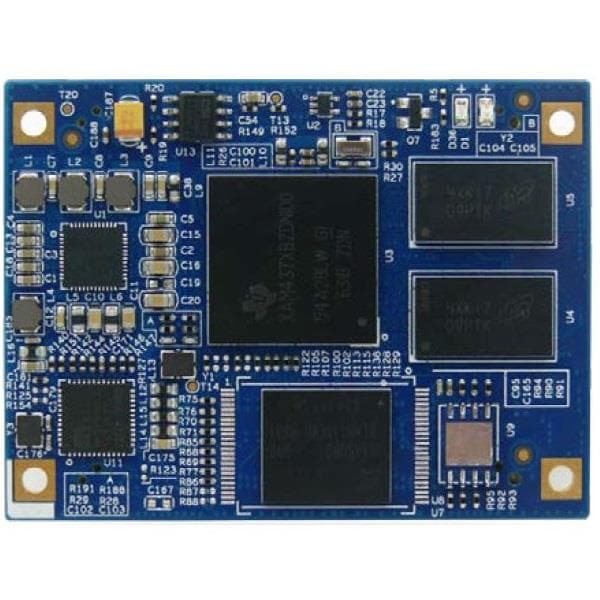

MYIR Tech MYC-C4378-4E512D-100-C System-On-Modules - SOM 1GHz AM4378, 512MB DDR3, 4GB eMMC

Flash: 4 GB

Frequency: 1 GHz

Dimensions: 60 mm x 45 mm

Memory Size: 256 MB

Memory Type: DDR3, DDR3L, LPDDR2

Unit Weight: 100 g

Cache Memory: 32 kB, 32 kB, 256 kB

Installed RAM: 512 MB

Interface Type: ADC, Audio, CAN, Ethernet, GPIO, HDMI, I2C, JTAG, RS-458, SDIO, SPI, UART, USB

Processor Type: AM4378

Processor Brand: Texas Instruments

Processor Series: TI AM437x

Maximum RAM Capacity: 512 MB

On-Board Storage Size: 4 GB

On-Board Storage Type: eMMC

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
