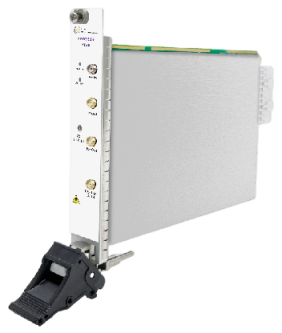

MVIT Technology FED3543 Down Converter (9 kHz - 43 GHz)

Images are for illustrative purposes only.

Downconverter IF Output Specifications

IF Output Frequency: 1875 ± 500 MHz

IF Output Power: 0 dBm

Gain Range:

-35 dB to +25 dB (Normal Mode)

-15 dB to +45 dB (Low Noise Mode)

Gain Flatness: ±1.5 dB

Conversion Spurious: ≤ -60 dBc

Image Rejection: ≥ 60 dB

Downconverter RF Input Requirements

Input Frequency Range: 9 kHz to 43 GHz

Maximum Input Power: ≤ +15 dBm

Local Oscillator (LO)

LO Phase Noise: ≤ -104 dBc/Hz @ 10 kHz

LO Step Size: 10 MHz

Reference Clock

Reference Frequency: 10 MHz

Output Power: 9 ± 1 dBm

Frequency Stability: ±0.05 ppm

Power Consumption

Conversion Module Power Consumption: ≤ 42 W
