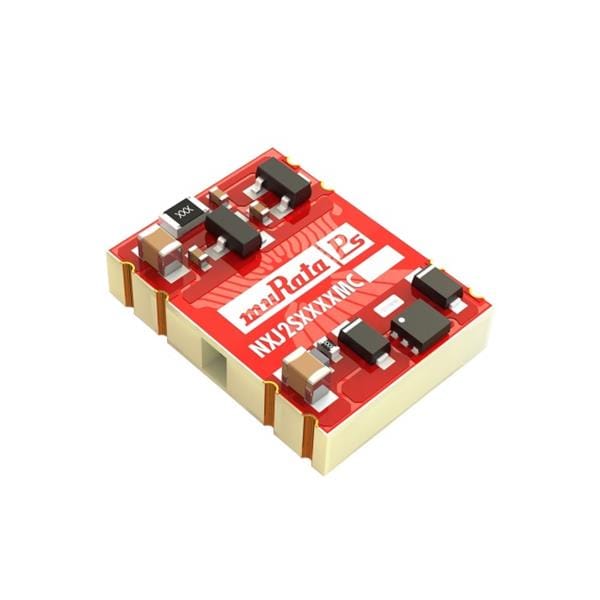

Murata Power Solutions NXJ2S1212MC-R13 Isolated

Width: 11.43 mm

Height: 3.16 mm

Length: 15.49 mm

Industry: Industrial

Application: Industrial

Output Power: 2 W

Input Voltage: 10.8 V to 13.2 V

Mounting Style: SMD/SMT

Isolation Voltage: 5.2 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 13.2 V

Input Voltage - Min: 10.8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 167 mA

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
