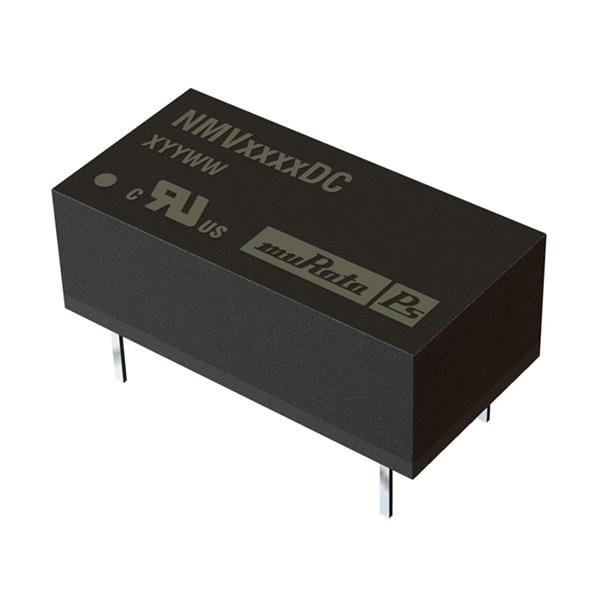

Murata Power Solutions NMV0505DC Isolated 1W TH 1W 5-5V DIP DC/DC

Width: 9.8 mm (0.386 in)

Height: 6.8 mm (0.268 in)

Length: 19.5 mm (0.768 in)

Industry: Industrial

Dimensions: 19.5 mm x 9.8 mm x 6.8 mm

Application: Industrial

Unit Weight: 2.400 g

Output Power: 1 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 2 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 100 mA

Output Current-Channel 2: 100 mA

Output Voltage-Channel 1: 5 V

Output Voltage-Channel 2: - 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
