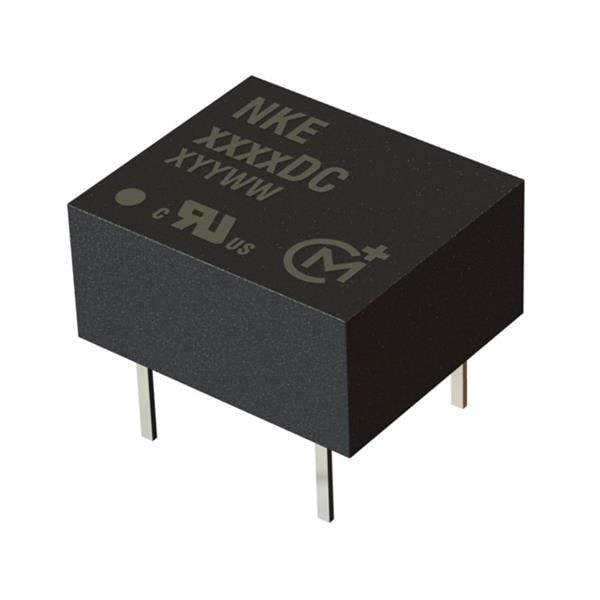

Murata Power Solutions NKE0503DC Isolated 1W 5-3.3V DIP SINGLE DC/DC

Width: 9.8 mm (0.386 in)

Height: 5.4 mm (0.213 in)

Length: 11.5 mm (0.453 in)

Industry: Medical, Industrial

Application: Industrial

Unit Weight: 1.250 g

Output Power: 1 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 303 mA

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
