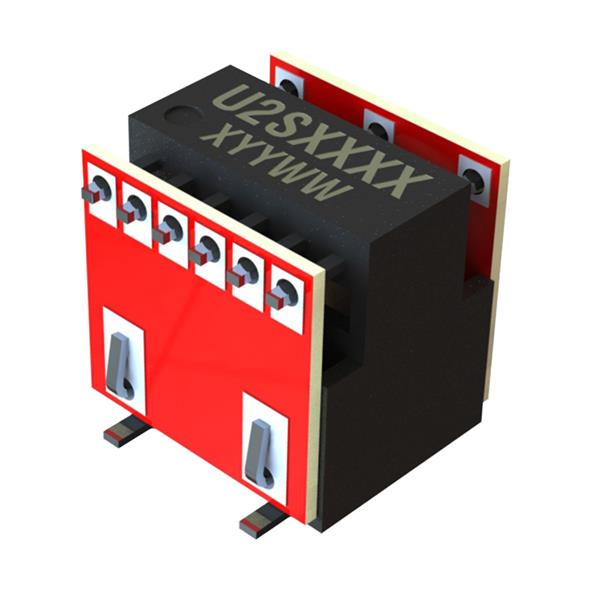

Murata Power Solutions MTU2S0524MC Isolated 2W 5VIN 24VOUT SINGLE DC/DC

Width: 8.2 mm

Height: 8.5 mm

Length: 8.4 mm

Industry: Medical, Industrial

Application: Industrial

Unit Weight: 750 mg

Output Power: 2 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: SMD/SMT

Isolation Voltage: 1 kV

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 83 mA

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
