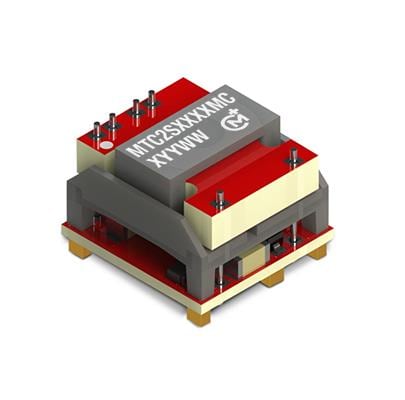

Murata Power Solutions MTC2S1212MC-R13 Isolated 167 MA 12V

Width: 14.22 mm

Height: 11.25 mm

Length: 14.99 mm

Industry: Medical, Industrial

Efficiency: 83.5 %

Application: Industrial, Medical

Unit Weight: 3.520 g

Output Power: 2 W

Input Voltage: 9 V to 18 V

Mounting Style: SMD/SMT

Mechanical Style: Isolated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 18 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 167 mA

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
