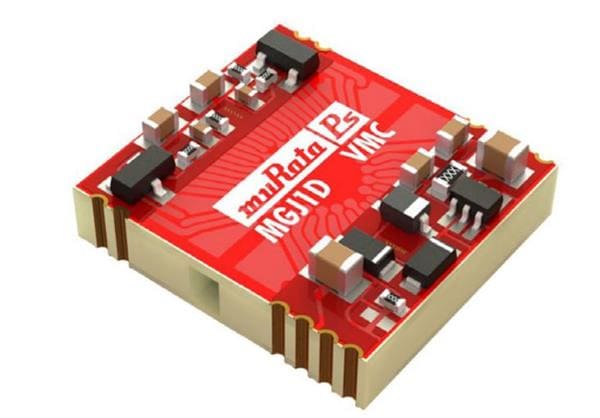

Murata Power Solutions MGJ1D241802VMC-R13 Isolated DC-DC SM 24-18/2.5V

Width: 12 mm

Height: 4.45 mm

Length: 16 mm

Industry: Medical, Industrial

Output Power: 1 W

Mounting Style: SMD/SMT

Isolation Voltage: 5.2 kV

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 26.4 V

Input Voltage - Min: 21.6 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 49 mA

Output Current-Channel 2: 49 mA

Output Voltage-Channel 1: 18 V

Output Voltage-Channel 2: - 2.5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
