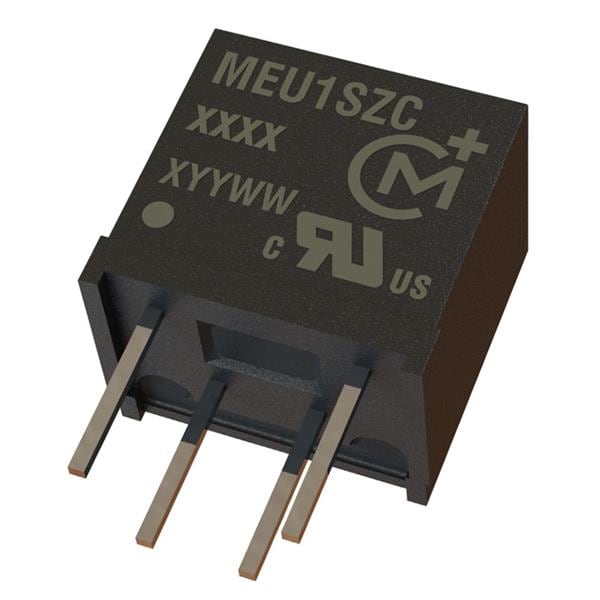

Murata Power Solutions MEU1S1212ZC Isolated 1W 12VIN 12VOUT DC/DC

Width: 6.1 mm (0.24 in)

Height: 7.95 mm (0.313 in)

Length: 8.3 mm (0.327 in)

Industry: Medical, Industrial

Application: Industrial

Unit Weight: 770 mg

Output Power: 1 W

Input Voltage: 10.8 V to 13.2 V

Mounting Style: Through Hole

Isolation Voltage: 1 kV

Number of Outputs: 1 Output

Input Voltage - Max: 13.2 V

Input Voltage - Min: 10.8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 83 mA

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
