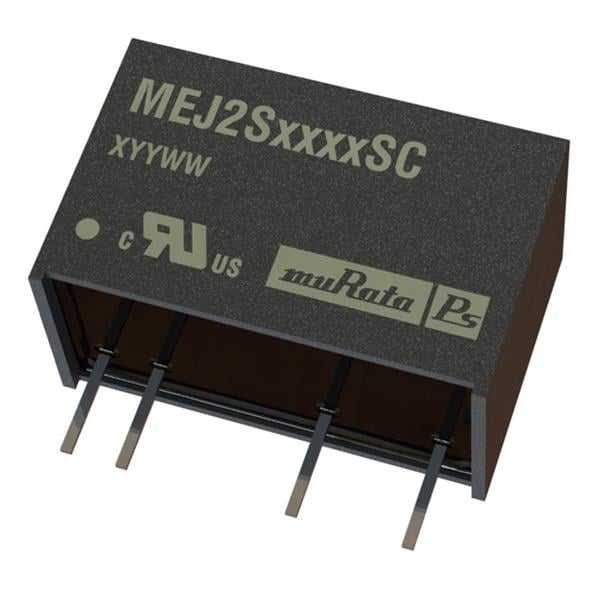

Murata Power Solutions MEJ2S1209SC Isolated 2W 12-9V SIP DUAL DC/DC

Width: 9.8 mm (0.386 in)

Height: 12.5 mm (0.492 in)

Length: 19.5 mm (0.768 in)

Industry: Medical, Industrial

Application: Industrial, Medical

Unit Weight: 4.200 g

Output Power: 2 W

REACH - SVHC: Details

Input Voltage: 10.8 V to 13.2 V

Mounting Style: Through Hole

Isolation Voltage: 5.2 kV

Number of Outputs: 1 Output

Input Voltage - Max: 13.2 V

Input Voltage - Min: 10.8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 222 mA

Output Voltage-Channel 1: 9 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
