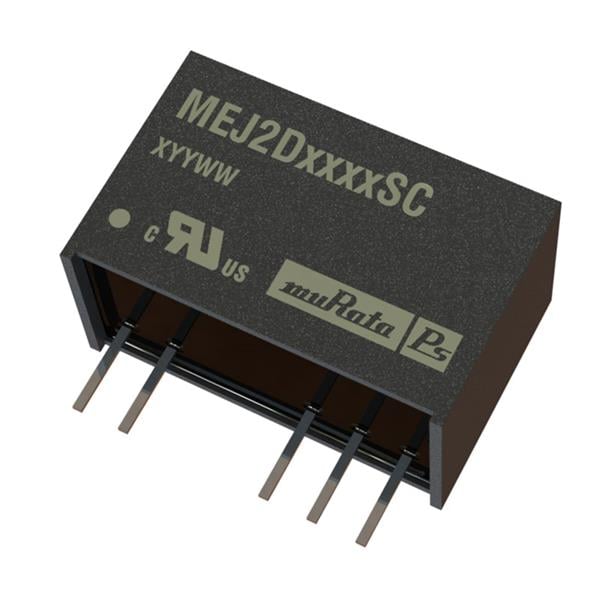

Murata Power Solutions MEJ2D0515SC Isolated 2W 5VIN +/-15VOUT DC/DC

Width: 9.8 mm (0.386 in)

Height: 12.5 mm (0.492 in)

Length: 19.5 mm (0.768 in)

Industry: Medical, Industrial

Dimensions: 19.5 mm x 9.8 mm x 12.5 mm

Application: Industrial, Medical

Unit Weight: 4.200 g

Output Power: 2 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: Through Hole

Isolation Voltage: 5.2 kV

Number of Outputs: 2 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 67 mA

Output Current-Channel 2: 67 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
