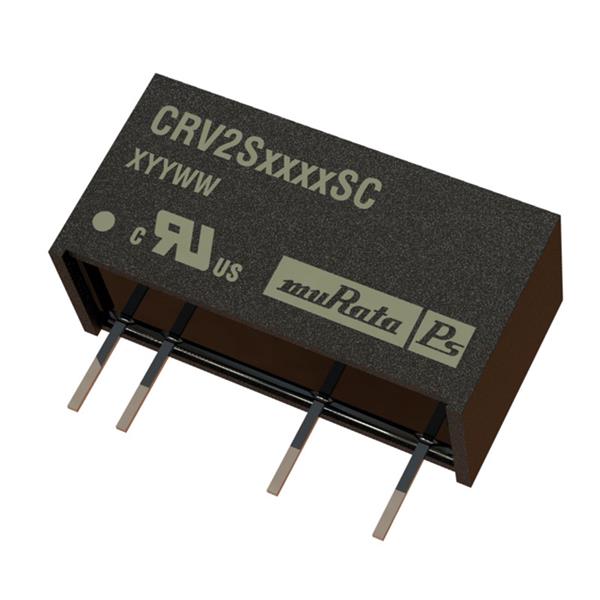

Murata Power Solutions CRV2S0505SC Isolated 2W 5-5V SIP SINGLE

Width: 7.6 mm (0.299 in)

Height: 10 mm (0.394 in)

Length: 19.6 mm (0.772 in)

Industry: Industrial

Application: Industrial

Unit Weight: 2.100 g

Output Power: 2 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 400 mA

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
