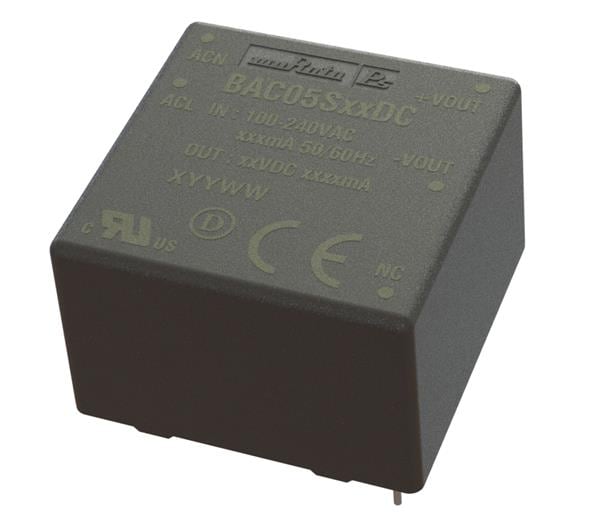

Width: 25.4 mm
Height: 16.3 mm
Length: 25.4 mm
Industry: Medical, Industrial
Dimensions: 25.4 mm x 25.4 mm x 16.3 mm
Output Power: 5 W
Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC
Mounting Style: Through Hole
Input Frequency: 47 Hz
Load Regulation: Regulated
Isolation Voltage: 4.25 kV
Number of Outputs: 1 Output
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 1 A
Output Voltage-Channel 1: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
