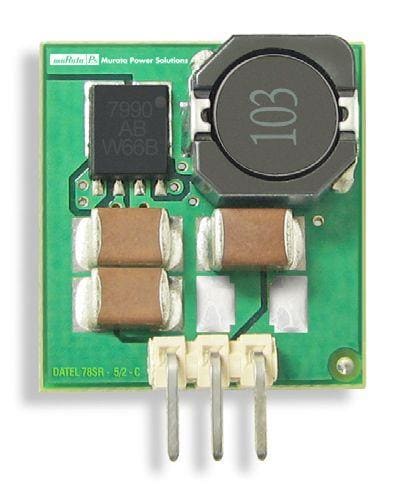

Murata Power Solutions 78SR-5/2-C Non-Isolated / PoL 8-32VIN/5VOUT 2A SIP DC/DC

Width: 20.3 mm (0.799 in)

Height: 6.5 mm (0.256 in)

Length: 21.6 mm (0.85 in)

Industry: Industrial

Output Type: Switching Regulator

Unit Weight: 4.200 g

Output Power: 10 W

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 32 V

Input Voltage - Min: 8 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 2 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
