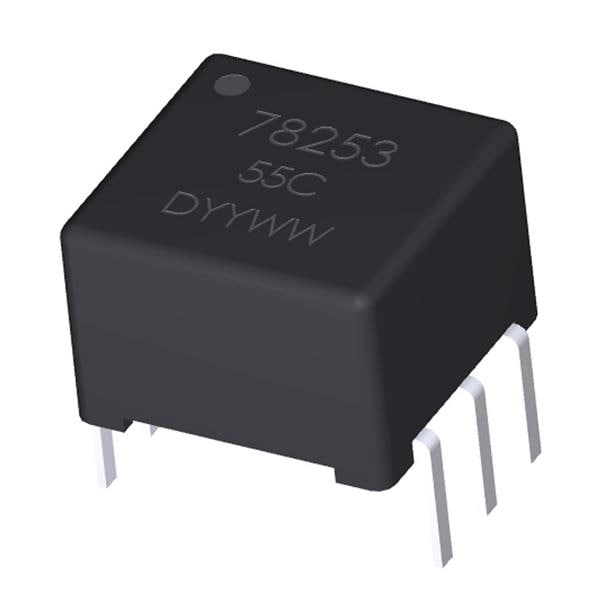

Murata Power Solutions 78253/55C Compatible Converter Transformer DIP TRANS 4KVDC 5V/5V IN/OUT

Width: 9 mm

Height: 6.35 mm

Length: 9.52 mm

Inductance: 830 uH

Turns Ratio: 1:1:36

Unit Weight: 1 g

Power Rating: 500 mW

Mounting Style: Through Hole

Primary Winding: Single Primary Winding

Secondary Winding: Single Secondary Winding

Termination Style: Through Hole

Primary Voltage Rating: 5 V

Secondary Current Rating: 200 mA

Secondary Voltage Rating: 5 V

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
