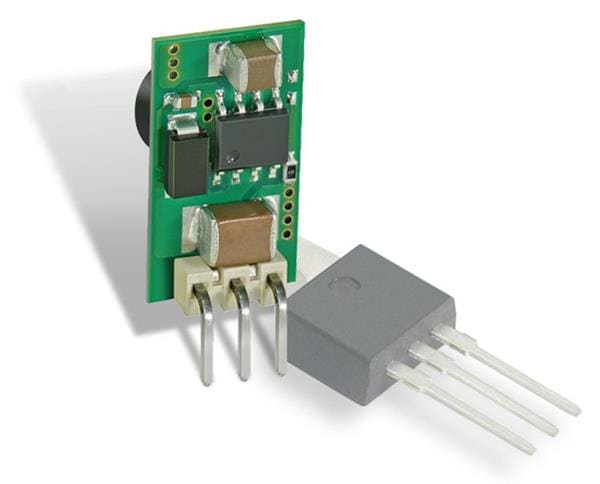

Murata Power Solutions 7805SR-C Non-Isolated / PoL 2.5W 8-36VIN/5VOUT .5A DC/DC

Width: 10.4 mm (0.409 in)

Height: 10.5 mm (0.413 in)

Length: 19.1 mm (0.752 in)

Industry: Industrial

Output Type: Switching Regulator

Unit Weight: 2.495 g

Output Power: 3 W

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 7.5 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 500 mA

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
