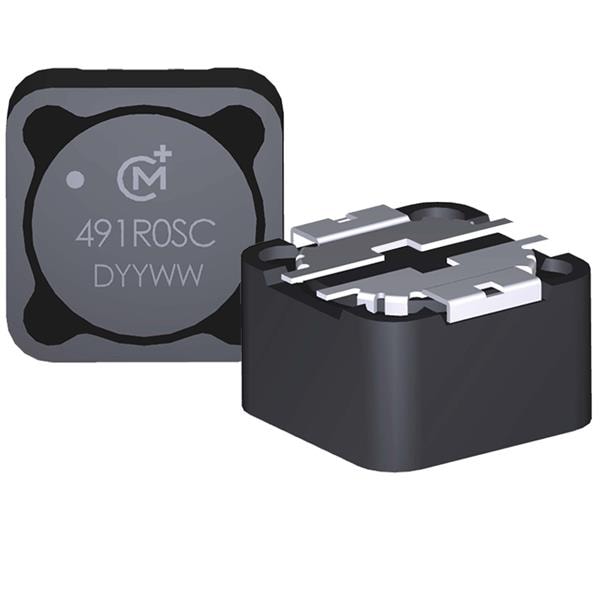

Murata Power Solutions 49100SC Line Choke 10uH 5.1A Ind Single
Model49100SC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.2 mm
Height: 8 mm
Length: 12.2 mm
Core Type: Bobbin
Q Minimum: 43
Shielding: Shielded
Tolerance: 20 %
Inductance: 10 uH
Application: Power
Termination: Standard
Unit Weight: 3.500 g
Mounting Style: PCB Mount
Test Frequency: 10 kHz
Termination Style: SMD/SMT
Maximum DC Current: 5.1 A
Maximum DC Resistance: 21 mOhms
Self Resonant Frequency: 19 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
