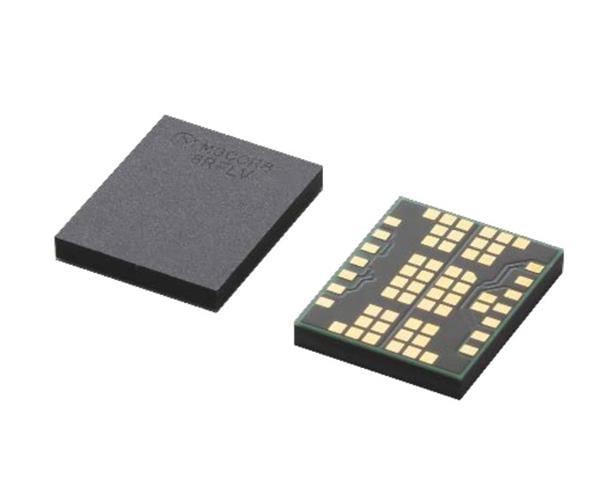

Murata Electronics MYMGC0R88RFLF2RVD Non-Isolated / PoL 8A, non-isolated PoL DC/DC Converter, LGA, 3.3-5.5Vin, 0.85Vout, -40 to +85degC

Width: 12 mm (0.472 in)

Height: 2.4 mm (0.094 in)

Length: 15 mm (0.591 in)

Industry: Industrial

Dimensions: 15 mm x 11.9 mm x 2.4 mm

Output Power: 6.8 W

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3.3 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 8 A

Output Voltage-Channel 1: 850 mV

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
