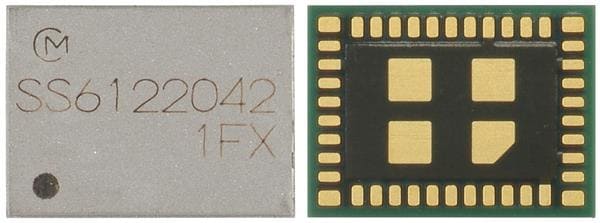

Murata Electronics LBWA1KL1FX-875 Multiprotocol Modules Type 1FX Shielded ultra-small dual bandWi-Fi 11a/b/g/n/ac Bluetooth 8.2

Data Rate: 11 Mb/s, 54 Mb/s, 65 Mb/s

Frequency: 2.4 GHz

Dimensions: 6.95 mm x 5.15 mm x 1.1 mm

Output Power: 17 dBm

Interface Type: SDIO

Moisture Sensitive: Yes

Modulation Technique: CCK, DSSS, OFDM

Supply Voltage - Max: 4.2 V

Supply Voltage - Min: 3.35 V

Antenna Connector Type: External

Operating Supply Voltage: 3.6 V

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 60 mA

Supply Current Transmitting: 370 mA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
