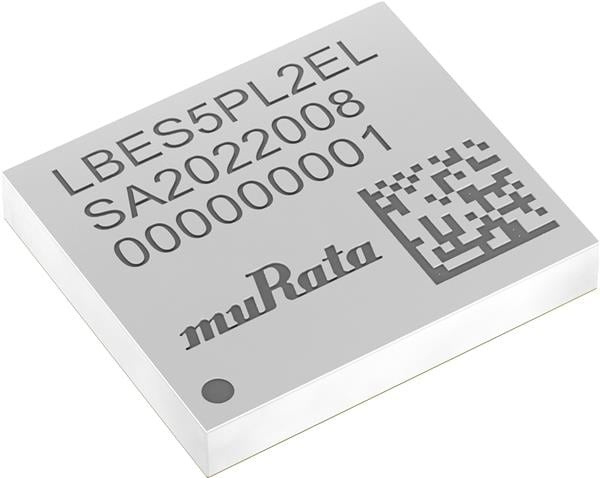

Murata Electronics LBES5PL2EL-923 Tri-Radio Module Shielded Small Wi-Fi 11a/b/g/n/ac/ax + Bluetooth 5.3 Module Type 2EL

Data Rate: 601 Mb/s

Frequency: 2.4 GHz, 5.8 GHz

Shielding: Shielded

Dimensions: 8.8 mm x 7.7 mm x 1.3 mm

Output Power: 20 dBm

Interface Type: SPI

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 3.46 V

Supply Voltage - Min: 1.71 V

Operating Supply Voltage: 1.8 V, 3.3 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac/ax

Supply Current Receiving: 200 uA, 101 mA

Supply Current Transmitting: 148 mA, 234 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.3
