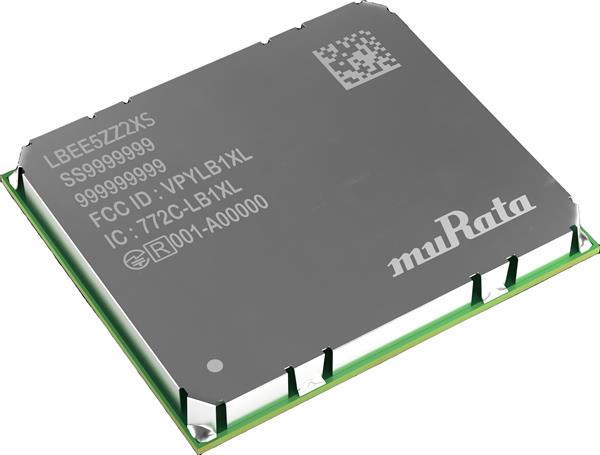

Murata Electronics LBEE5ZZ2XS-846 Multiprotocol Modules Shielded Small Wi-Fi 11a/b/g/n/ac/ax 2x2 MIMO + Bluetooth 5.3 Module

Data Rate: 1 Mb/s, 2 Mb/s, 5.5 Mb/s, 11 Mb/s

Frequency: 2.4 GHz, 5 GHz

Compliance: RoHS

Dimensions: 19.2 mm x 16.5 mm x 2.1 mm

Output Power: 18 dBm

Interface Type: PCIe, SDIO, UAR

Moisture Sensitive: Yes

Modulation Technique: 35 %

Supply Voltage - Max: 3.46 V

Supply Voltage - Min: 1.71 V

Operating Supply Voltage: 1.8 V, 3.3 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac/ax

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.3
