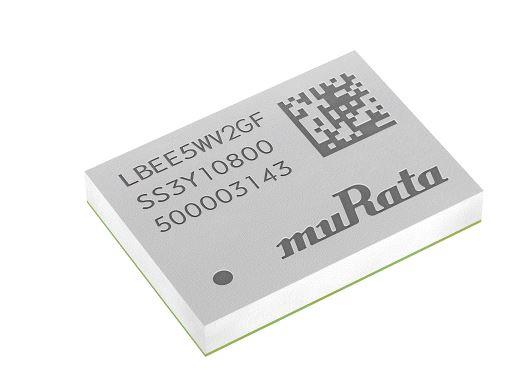

Murata Electronics LBEE5WV2GF-001 WLAN Bluetooth Combo Module Type 2GF Shielded Small Wi-Fi 11a/b/g/n/ac Dual-band SISO + Bluetooth 5.4 Module

Features: MAC/BD Address Are Embedded

Frequency: 2.412 GHz to 5.825 GHz

Shielding: Shielded

Dimensions: 10 mm x 7.2 mm x 1.5 mm

Interface Type: UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 4.6 V

Supply Voltage - Min: 3.2 V

Antenna Connector Type: 7 Channel

Operating Supply Voltage: 3.2 V to 4.6 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.3
