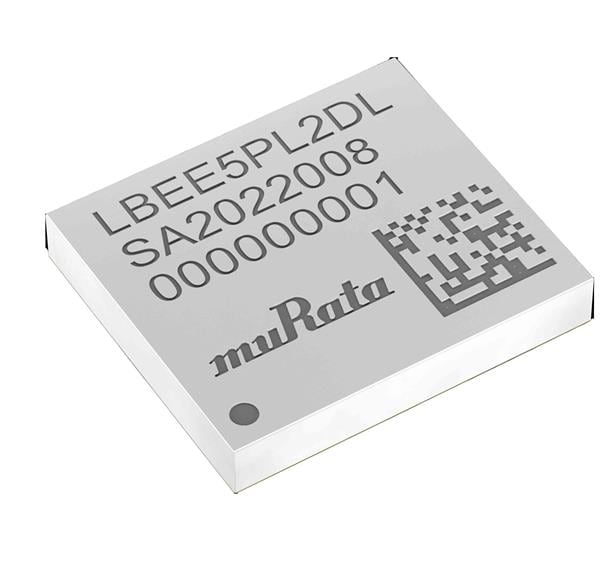

Murata Electronics LBEE5PL2DL-921 Bluetooth Modules Type 2DL-921, Shielded Small Wi-Fi 11a/b/g/n/ac/ax + Bluetooth 5.3 Module

Data Rate: 11 Mb/s

Frequency: 2.4 GHz, 5 GHz

Shielding: Shielded

Dimensions: 8.8 mm x 7.7 mm x 1.3 mm

Output Power: 18 dBm

Interface Type: UART

Mounting Style: PCB Mount

Moisture Sensitive: Yes

Supply Voltage - Max: 3.46 V

Supply Voltage - Min: 1.71 V

Antenna Connector Type: u.FL

Operating Supply Current: 420 mA, 1.009 A

Operating Supply Voltage: 1.8 V, 3.3 V

Supply Current Receiving: 101 mA

Supply Current Transmitting: 234 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.3
