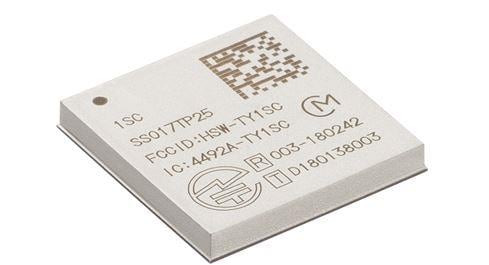

Murata Electronics LBAD0XX1SC-151 Cellular Modules Type 1SC M1/NB-IoT module

Frequency: 699 MHz to 960 MHz

Dimensions: 11.4 mm x 11.1 mm x 1.4 mm

Output Power: 23 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 1.9 V

Supply Voltage - Min: 1.7 V

Antenna Connector Type: External

Protocol - GPS, GLONASS: GLONASS, GPS

Operating Supply Voltage: 1.8 V

Supply Current Receiving: 90 mA

Supply Current Transmitting: 400 mA, 800 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
