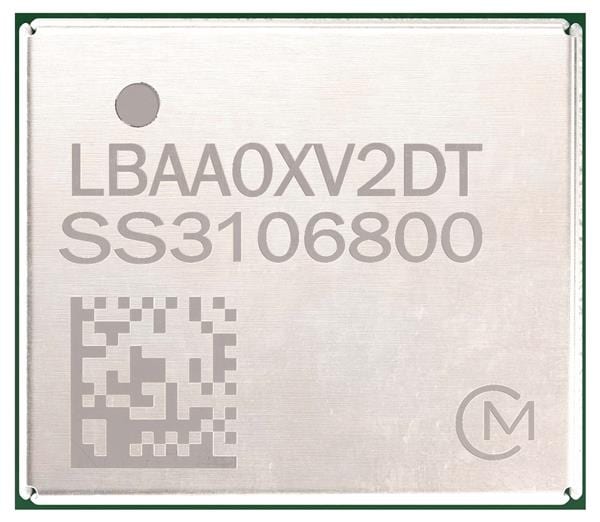

Murata Electronics LBAA0XV2DT-158 GNSS, LoRa, Wi-Fi Scanner Compact LoRa Edge module

Frequency: 860 MHz to 930 MHz, 2.412 GHz to 2.484 GHz

Dimensions: 9.98 mm x 8.7 mm x 1.74 mm

Output Power: 21 dBm

Interface Type: GPIO, Serial

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: LoRa Edge

Receiver Sensitivity: - 147 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Protocol - GPS, GLONASS: BPS, BeiDou

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 9 mA

Supply Current Transmitting: 118 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
