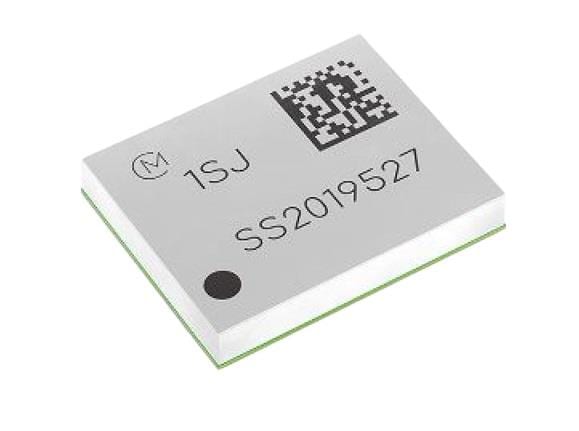

Murata Electronics LBAA0QB1SJ-296 LoRaWAN Modem Type 1SJ 868 MHZ/915 MHZ 3.3V

Frequency: 868 MHz, 915 MHz

Dimensions: 10 mm x 8 mm x 1.6 mm

Unit Weight: 840 mg

Output Power: 21.5 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: LoRa

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.2 V

Antenna Connector Type: External

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 15.5 mA

Supply Current Transmitting: 118 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
