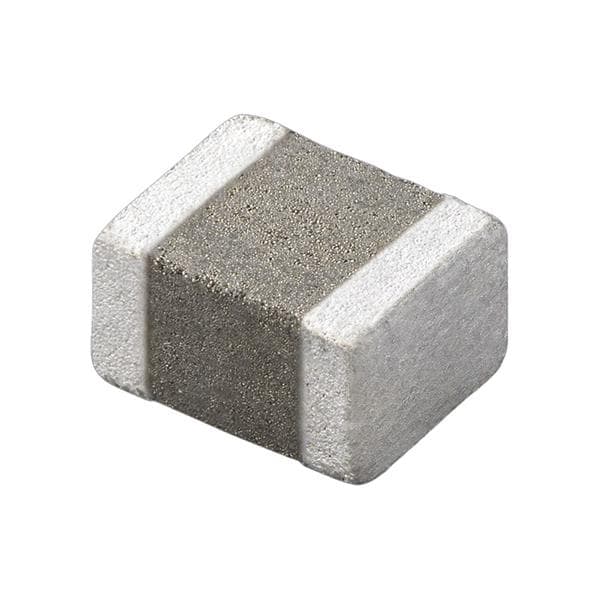

Murata Electronics DFE32CAHR68MR0L Power Inductors - SMD 0.68uH 7000mA 0.017ohm AEC-Q200
ModelDFE32CAHR68MR0L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 2.5 mm
Height: 2 mm
Length: 3.2 mm
Shielding: Shielded
Tolerance: 20 %
Inductance: 680 nH
Termination: Standard
Core Material: Metal Alloy
Qualification: AEC-Q200
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Current: 5 A
Saturation Current: 7 A
Maximum DC Resistance: 17 mOhms
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
