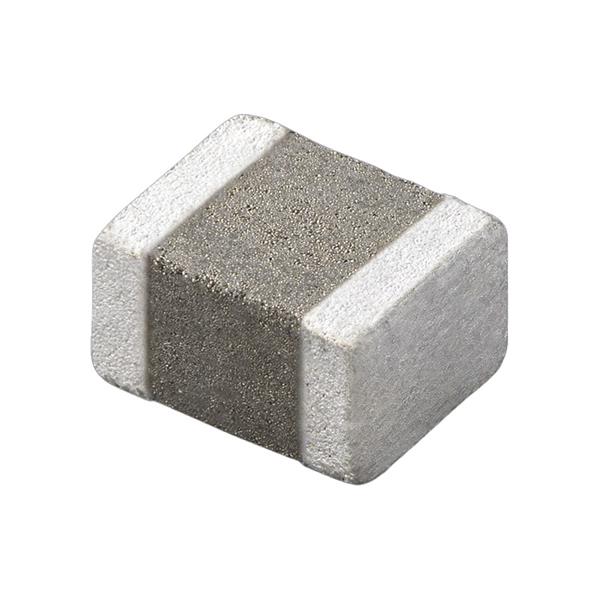

Murata Electronics DFE32CAH2R2MR0L Power Inductors - SMD 2.2uH 4000mA 0.043ohm AEC-Q200
ModelDFE32CAH2R2MR0L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 2.5 mm
Height: 2 mm
Length: 3.2 mm
Shielding: Shielded
Tolerance: 20 %
Inductance: 2.2 uH
Termination: Standard
Core Material: Metal Alloy
Qualification: AEC-Q200
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Current: 2.9 A
Saturation Current: 4 A
Maximum DC Resistance: 43 mOhms
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
