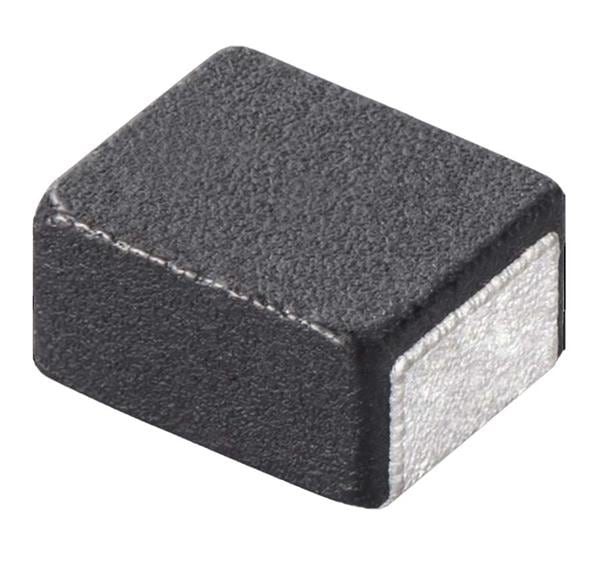

Murata Electronics DFE2MCPHR33MJLLQ High Withstand Voltage Wirewound Power Inductor 0806 0.33uH 8100mA Powertrain AEC-Q200
ModelDFE2MCPHR33MJLLQ
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 1.6 mm
Height: 1.2 mm
Length: 2 mm
Shielding: Shielded
Tolerance: 20 %
Inductance: 330 nH
Application: Automotive Powertrain, Safety Equipment
Termination: Standard
Core Material: Metal Alloy
Mounting Style: PCB Mount
Test Frequency: 1 MHz
Termination Style: SMD/SMT
Maximum DC Current: 5.1 A
Saturation Current: 8.1 A
Maximum DC Resistance: 18 mOhms
Maximum Operating Temperature: + 155 C
Minimum Operating Temperature: - 40 C
