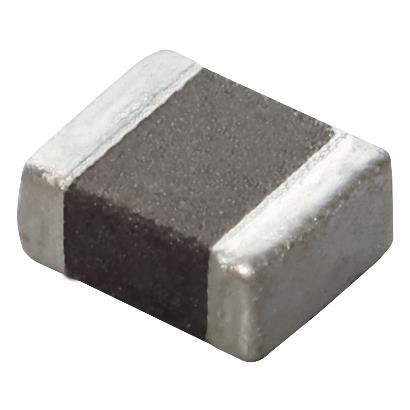

Murata Electronics DFE2MCAH2R2MJ0L Power Inductor
ModelDFE2MCAH2R2MJ0L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 1.6 mm
Height: 1.2 mm
Length: 2 mm
Shielding: Unshielded
Tolerance: 20 %
Inductance: 2.2 uH
Application: Automotive
Termination: Standard
Unit Weight: 18.800 mg
Core Material: Metal Alloy
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 1 MHz
Termination Style: SMD/SMT
Maximum DC Current: 1.4 A
Saturation Current: 1.7 A
Maximum DC Resistance: 169 mOhms
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 40 C
