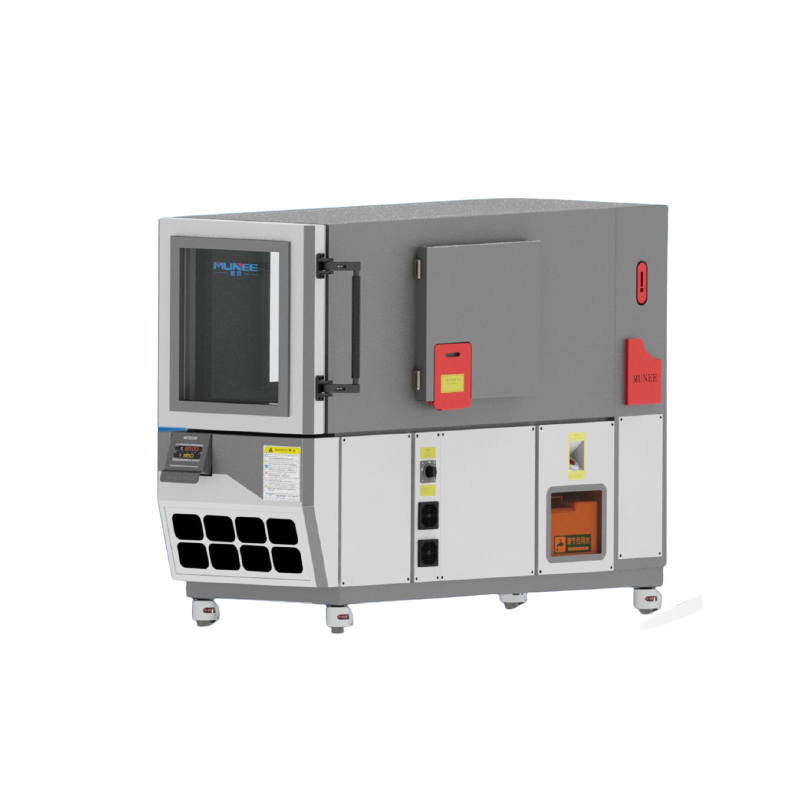

MUNEE M/FT-1000L Formaldehyde Release Cabin (1m³)

Total volume: 1m³

Internal dimensions (W×D×H): 700mmx1770mmx800mm

Dimensions (W×D×H): 1072mm × 2392mm x 1865mm

Temperature range: (15~40)°C (Adjustment accuracy： ±0.5°C)

Humidity range: (40~70)%RH (Adjustment accuracy： ±5%R.H.)

Air exchange rate: (0.2-2) ±0.05h

Center point wind speed: 0.1-0.3m/s

Sealing performance:

Static test: at 1000Pa, the leakage rate is less than 0.5% of the test volume / minute

Dynamic test: Leakage rate <5% of carrier gas flow rate at 0.5 times / h air exchange rate

Background concentration: Formaldehyde ≤6ug/m³

Total power: 5KW average power, 9KW total power
