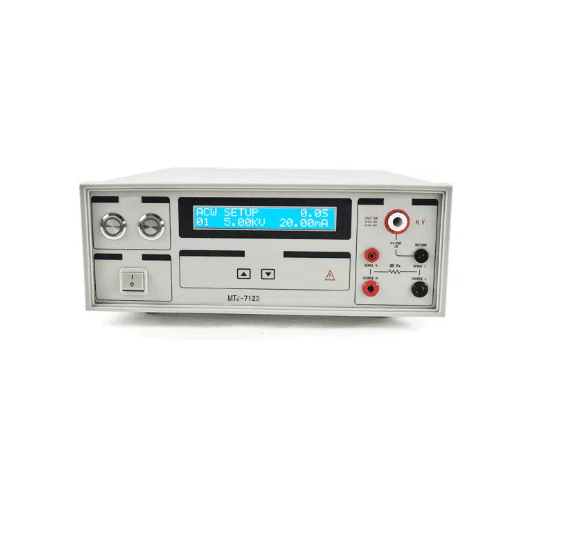

MultiTech MTJ-7123 Hipot Tester (5kVAC, 6kVADC)

Withstand Voltage Test

 AC

 utput Voltage Range: 0.1kV-5kV

Voltage 10V

Voltage Accuracy : 3%

Voltage Frequency: 50Hz/60Hz

Maximum Output Currentı :20mA

Current Setting: 0.01mA-20mA

Current Resolution: 0.01mA

Current Accuracy: 3%

 DC

Output Voltage Range: 0.1kV-6kV

Voltage Resolution: 10V

Current Setting: 0.01mA-10mA

Current Resolution: 0.01mA

Current Accuracy :3%

Insulation Resistance Test

 IR

Voltage Measurement Range: 500V-1000V DC

Voltage Resolution :100V

Voltage Accuracy: ±(3% okuma+3V)

Resistance Measuring Range: 1MΩ-2000MΩ

Resistance Measurement Accuracy: 10%

Upper Limit of Resistance Setting: 1MΩ-2000MΩ

Grounding Resistance Test (photovoltaic industry can be changed into DC grounding resistance test)

 GR

Voltage Frequency: 500V-1000V DC

Output Current Range: 100V

Current Accuracy ±(3% okuma+3V)

Current Measuring Range: 1MΩ-2000MΩ

Resistance Display Resolution :1MΩ

Resistance Setting Range: 1MΩ-300MΩ (3-10A);  1MΩ-150MΩ (10-30A)
