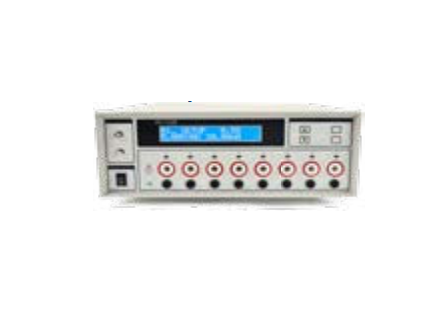

MultiTech MTJ-7122S4 Multichannel Hipot Tester (4CH)

Output Voltage : 0~5kV(AC) 0~6kV(DC)±(2%+5V)

AC Current Upper Limit : 0.00~20.00mA±(2%+2dgts)

AC Current Lower Limit : 0.00~20.00mA>±(2%+2dgts)

DC Current Upper Limit : 0.01~10.00mA ±(2%+2dgts)

DC Current Lower Limit : 0.01~10.00mA ±(2%+2dgts)

Insulation Resistance Test Voltage : 100~1000kV±(2%+5V)

Testing Time: 0.1~999.9s ±(2%+0.05sn)

Insulation Resistance:

Range: 1 – 1000 MΩ

Accuracy: ±(2 % ± 2 digits) when Voltage ≥ 500 V DC

Accuracy: ±(5 % ± 2 digits) when Voltage < 500 V DC

Range: 1000 – 9999 MΩ

Accuracy: ±(5 % ± 2 digits) when Voltage ≥ 500 V DC

Accuracy: ±(10 % ± 2 digits) when Voltage < 500 V DC
