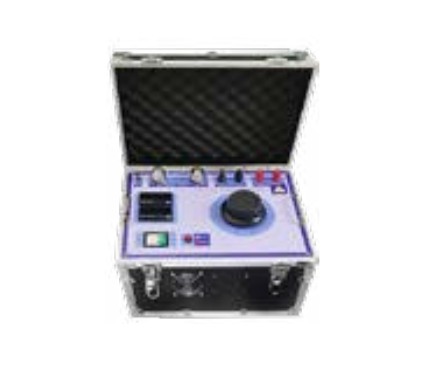

MultiTech MT-1000AK Current Source (1000 A)

Power source: AC: 220V ±% 10; 25A, 50Hz / 60Hz

Current output: AC: 1000A/ 5V or 500A/ 10V; Capacity: 5kVA

Output Current Distortion in Wave Form: ≤% 5

Display: Primary current, secondary current and conversion ratio

Accuracy: ±% 0,5,

Primary current range: 0 ~ 1100A; Resolution: 0.1A;

Secondary current range: 0 ~ 6A; Resolution: 0.001A

Current Time: 1000A range: 1000A 2 ~ 3 min , 500A 3 ~ 6 min; 500A range: 500A 2 ~ 3 min,

Double protection (over-protection and protection of software)

Working environment: Temperature -10 ~ 40, relative humidity % 80
