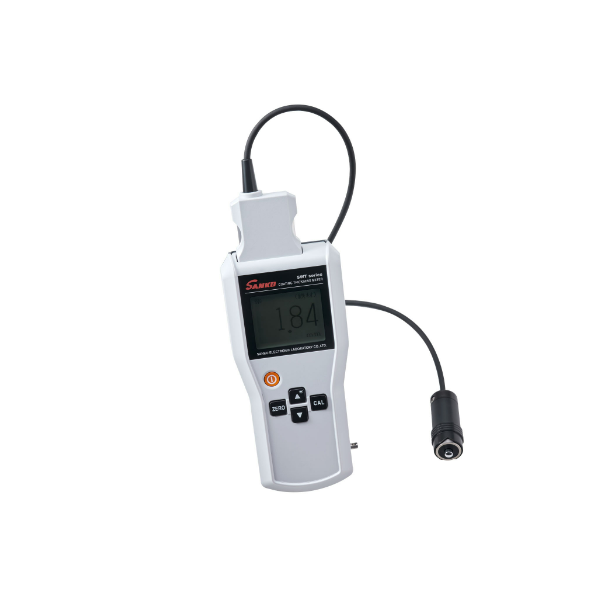

MULTI SWT-7000Ⅳ+SFN-325 Electro-Magnetic/ Eddy Current Coating Thickness Meters

Measurement Method: Dual (Electromagnetic/Eddy current) type (auto-selection for Fe/NFe)

Measurement Range:

Iron base :0～3.00mm

Non-ferrous metal base :0～2.50mm

Resolution:

1 μm: 0～999μm

0.01 mm: 1.00～3.00 mm (Fe), 1.00～2.50 mm (NFe)

by switching

0.1 μm: 0～400 μm, 0.5 μm: 400～500 μm

Accuracy:

0～100 μm: ±1 μm or ±2% of reading

101 μm～3.00 mm: ±2% (Fe)

101 μm～2.50 mm: ±2% (NFe)

Display Resolution:

0～400μm / 0.1μm

400～500μm / 0.5μm

1.00～3.00mm / 0.01mm

Power Supply: Dry Battery (LR6 × 2), AC adaptor

Probe: φ15×51mm

Dimension: W72×H30×D156mm

Weight: 200g+Probe

Accessory: Dry battery, Carrying case, Hand strap cord, Inspection certificate, CD (Instruction manual, USB driver, etc.)
