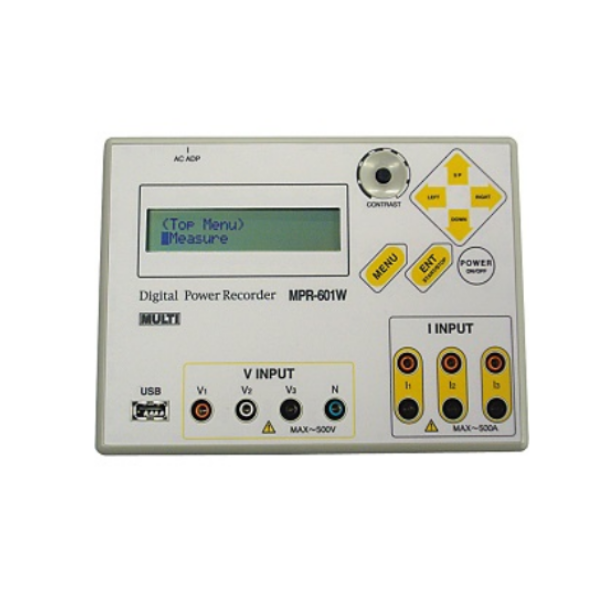

MULTI MPR-601W-02 Digital Power Recorder (0～500V, 10/50/100/600A, 0～100%)

Memory: USB flash memory

Measurement items: Voltage, Current,Active power, Apparent power

Power factor, Frequency, Energy(kWh), Integrating time, Frequency

Sampling rate: 2 times/sec.

Input impedance:

Voltage:Approx. 1MΩ

Current:Approx. 0.8Ω

Dimension and weight: 190(W) X 140(H) X 27(D)mm, Approx.1kg

Withstanding Voltage:

AC 3700V, 50/60Hz, 1 minute (between voltage input terminal and case)

AC 1500V, 50/60Hz, 1 minute (between power supply and case)

Insulation Resistance:

DC500V, more than 100MΩ(between voltage input terminal and case)

DC500V, 50MΩ (between power supply and case)

Operational Temperature: 0～50℃, Less than 85%RH (Without condensation)

Storage Temperature: -10～60℃, Less than 80%RH (Without condensation)

Power supply: AC adaptor/ LR-6(AA size)1.5V alkalin battery X 4

Measuring Range

Voltage:0～500V (1 range)

Current:10/50/100/600A (Auto ranging)

Power factor:0～100%

Frequency:45～65Hz
