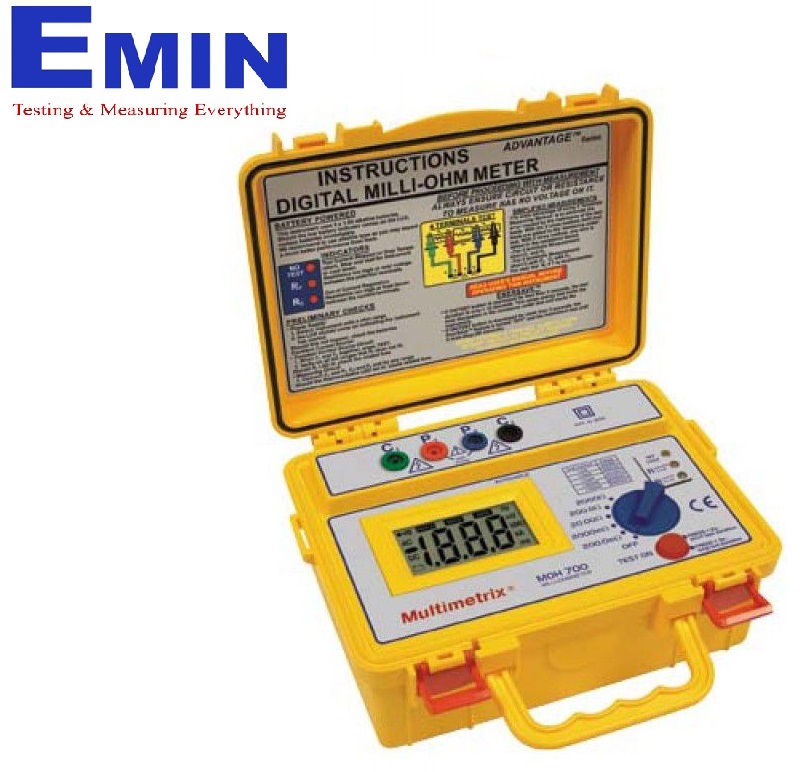

Multimetrix MOH 700 Milliohmmeter, and low resistance tester (0.1 mΩ ~ 2,000 Ω)

Manufacturer: Multimetrix

Model: MOH 700

Order No.: P06234103

Origin: Taiwan

Warranty: 12 months

- Measurement current from 1 mA to 100 mA

- Measurement methods: 4 wires or 2 wires (appropriate accessories supplied)

- 5 measurement ranges: from 0.1 mΩ to 2,000 Ω

Resolution of 100 µΩ/s to 1 Ω depending on calibre

Accuracy: 0.3 % ± 2 counts

- Instantaneous or stabilized (60 s) measurement

- Indication if voltage or current circuits are not established

- DATA HOLD function

- Low battery charge indicator

- Safety : 20 V Cat. IV (IEC 61010)

- Dimensions / weight:

- 250 x 190 x 110 mm / 1.540 kg

Supplied in a hard case with 1 shoulder strap, 4 leads 60 cm

long terminated by crocodile clips, 2 dual-input leads 80 cm long

terminated by crocodile clips and 8 x 1.5 V batteries.
