Multimetrix ERT 200 Analogue earth resistance tester

- 2 P and 3 P measurement methods

- Earth potential measurement up to 30 Vac

- 3 measurement ranges: 10 Ω / 100 Ω / 1000 Ω

- Battery charge measurement

- Safety: 30 V Cat. III (IEC 61010-1)

- Dimensions / weight: 205 x 90 x 55 mm / 515 g (including batteries)

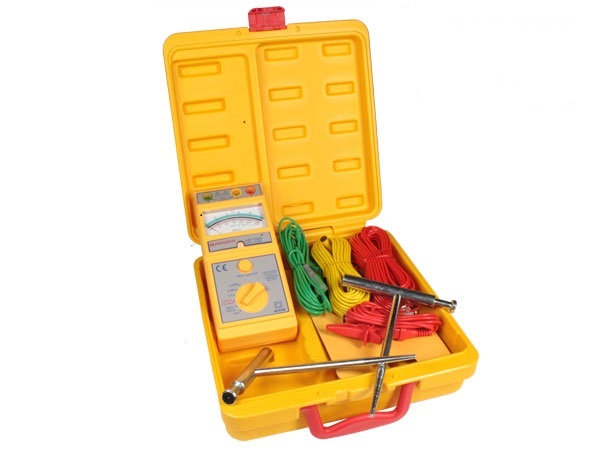

Supplied in a hard case with: 3 leads terminated by crocodile clips (red 15 m, yellow 10 m and green 5 m), 1 red lead 1.20 m long terminated by a crocodile clip, 2 x 20 cm stakes, 1 double measurement cable for the 2 P method and batteries.
