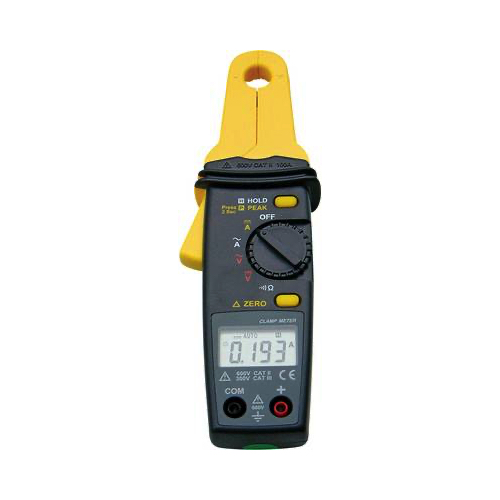

Multimetrix CM 605 Digital Multimeters (10 A / 80 A / 100 A; 600 V rms)

Clamping diameter: 12.5 mm

Display: 10,000 counts

Measurement type AVG

I AC /I DC

Ranges: 10 A / 80 A / 100 A

Basic accuracy: 2 % (AC) 2.5 % (DC)

Best resolution: 1 mA

V AC /V DC

Ranges: 600 V rms

Basic accuracy: 1.5 % (AC) 1 % (DC)

Best resolution: 0.1 V

Resistance

Ranges: 10 kΩ

Basic accuracy: 1 %

Best resolution: 1 Ω

Continuity

Threshold: 50 Ω

Protection: 600 V rms

Automatic zero adjustment: Yes

Other features: Analogue output: 10 mV/A AC or DC, 4.5 % + 0.5 mV, 20 kHz à ± 3 dB, Z = 3 kΩ; HOLD / PEAK (peak value)

Dimensions / weight: 202 x 70 x 34 mm / 180 g

Safety: 300 V Cat. III selon IEC 61010-1, IEC 61010-2-032

Accessories supplied: 1 carrying bag, 1 set of red/black test-probe leads and 2 x 1.5 V LR3/AAA batteries
