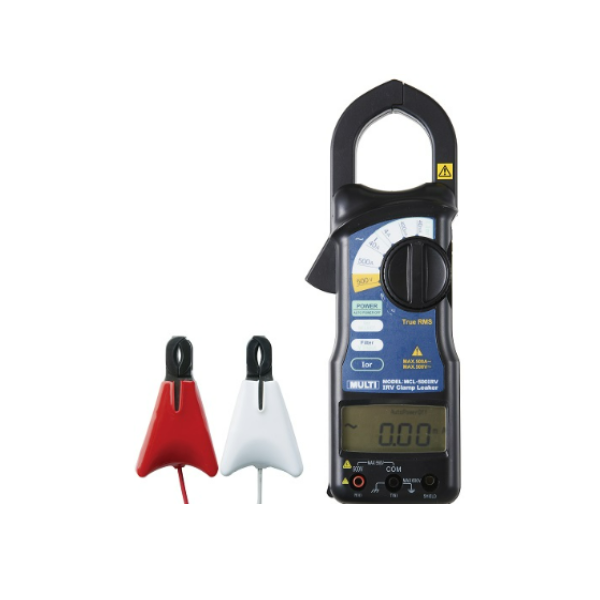

MULTI MCL-500IRV Non-contact Io/Ior Leakage Clamp Meter (40mA/400mA/4A/40A/500A)
ManufacturerMULTI(View more products from this manufacturer)
ModelMCL-500IRV
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measuring Function: Line Current, Leakage Current, Resistive Leakage Current, Voltage
CT Inside Diameter: φ40mm
AC Current Range: 40mA/400mA/4A/40A/500A
Minimum Resolution: 0.01mA
Other Function: Over Range Display, Data Hold, Low Battery Indication, Auto Power Off
Sampling Rate: Two Times/Second
Operating Circuit Voltage: Less than AC500V (Isolated Electric Wire)
Operating Temp. & Humidity Range: 0~50℃ Less than 85%RH (w/o condensation)
Power Supply: AAA Size Alkaline Battery x 3
Dimension/Weight: W70×H223×D34mm Approx.440g
